Architecture of the Palo Alto CFT Lambda FunctionsΒΆ

_images/aws.png

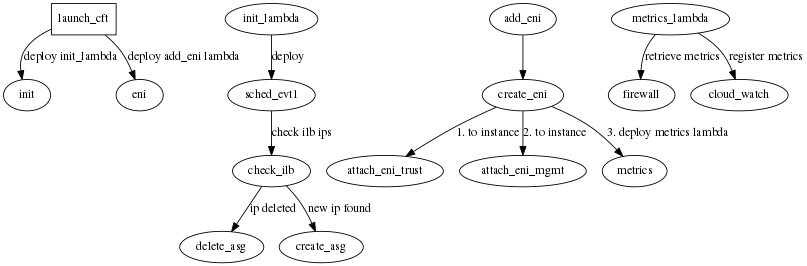

digraph { size ="8.4"; launch_cft [shape=box]; launch_cft -> init [weight=8, label="deploy init_lambda"] init_lambda -> sched_evt1 [weight=8, label="deploy"] launch_cft -> eni [weight=8, label="deploy add_eni lambda"] sched_evt1 -> check_ilb [weight=8, label="check ilb ips"] check_ilb -> delete_asg [weight=8, label="ip deleted"] check_ilb -> create_asg [weight=8, label="new ip found"] add_eni -> create_eni [weight=8] create_eni -> attach_eni_trust [weight=8, label="1. to instance"] create_eni -> attach_eni_mgmt [weight=8, label="2. to instance"] create_eni -> metrics [weight=8, label="3. deploy metrics lambda"] metrics_lambda -> firewall [weight=8, label="retrieve metrics"] metrics_lambda -> cloud_watch [weight=8, label="register metrics"] }
